Excellent question. This delves into a critical challenge in industrial monitoring, firefighting, and defense. Imaging through flames is difficult because flames are a chaotic, high-temperature source of intense, broadband radiation that typically blinds conventional cameras. A penetration imaging system (or flame-penetrating imaging system) achieves this by exploiting specific physical principles and spectral technologies. Here’s how it works, broken down into key strategies:

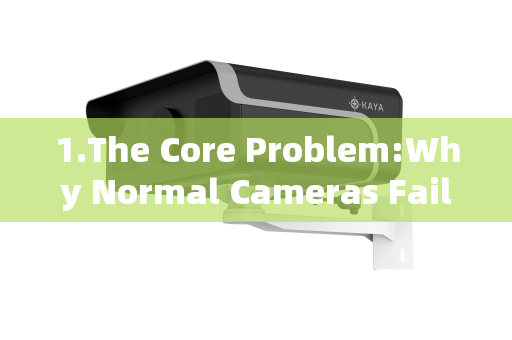

Penetration Imager Effect Images
- Saturation & Noise: Flames emit massive amounts of visible and near-infrared (NIR) light. This overwhelms a camera's sensor, causing complete saturation (white-out) and masking any background object.
- Spatial Distortion: The hot, turbulent gases create severe refractive index variations (like a "heat haze"), distorting and blurring the image.
Key Strategies for Penetration Imaging
A. Spectral Filtering (The Most Common Method)
This is the heart of most flame-penetration systems. The idea is to only look at wavelengths of light that the flame is transparent to.
-
The Science: Combustion products (like water vapor H₂O, carbon dioxide CO₂, and soot) have specific absorption bands in the infrared spectrum. Between these bands are "atmospheric windows" where radiation passes through with less attenuation.

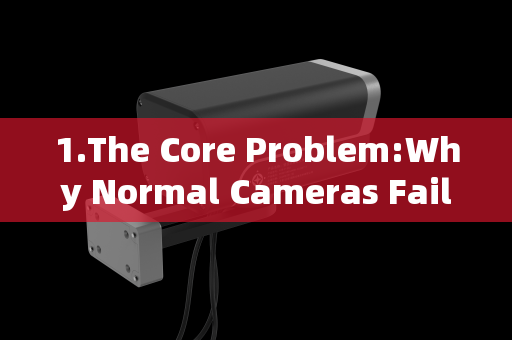

Penetration Imager Effect Images
-
Primary Spectral Windows Used:
- Short-Wave Infrared (SWIR): ~1.4 µm - 1.8 µm
- This is the most effective band for many hydrocarbon fires.
- Soot particles (which cause black smoke) scatter shorter wavelengths (visible light) but are much more transparent to SWIR.
- Hot gases like H₂O and CO₂ have lower absorption in specific sub-bands here. By using a very narrow-band filter (e.g., centered at 1.7 µm), the system can see through the flame's own emission.
- Mid-Wave Infrared (MWIR): ~3.4 µm - 4.1 µm
Another strong window, especially for seeing through hot gases. It's often used in conjunction with SWIR.
Penetration Imager Effect Images
- Active Illumination in SWIR: Some systems use an invisible, eye-safe SWIR laser to actively illuminate the scene. The camera, filtered to that exact laser wavelength, sees the reflected laser light. Since the flame doesn't emit significantly at that very specific wavelength, it becomes nearly invisible, revealing the objects behind it.
How it works in practice: The system uses a specialized SWIR or MWIR camera equipped with a very narrow-band optical filter that only allows light from a specific "transparent" wavelength to pass. This drastically reduces the flare from the flame's own emission.
- Short-Wave Infrared (SWIR): ~1.4 µm - 1.8 µm
B. Temporal Gating / High-Speed Imaging
- The Science: Flames are turbulent and intermittent. There are brief instants (milliseconds or less) where the flame density between the camera and the target is lower.
- How it works: A camera with an extremely fast shutter (gated intensifier or high-speed sensor) snaps an image during these fleeting moments of clarity. By taking thousands of frames per second and intelligently stacking or selecting the clearest frames, a usable image can be reconstructed. This is often combined with spectral filtering.
C. Computational Imaging & Signal Processing
- The Science: Treating the flame as noise or a dynamic distorting layer.
- How it works:
- Background Subtraction: If the system knows the "flame-only" signature (from a reference image), it can attempt to subtract it from the live feed.
- Wavefront Sensing & Correction: Advanced systems (like some used in defense for seeing through engine exhaust) measure the wavefront distortion caused by the heat plume and use a deformable mirror or algorithm to correct it in real-time—similar to technology in advanced astronomy.
- Multi-Spectral Fusion: Combining images from multiple spectral bands (e.g., SWIR and MWIR) and using algorithms to enhance the common background scene while suppressing the transient flame features.
D. Millimeter-Wave / Terahertz Imaging (A Different Physical Approach)
- The Science: This abandons infrared/optical light altogether. Millimeter-wave radiation (30-300 GHz) has much longer wavelengths.
- How it works: These long waves are not significantly scattered or absorbed by soot particles or hot gases. They can pass through flames and thick smoke with ease. While they don't provide fine visual detail like an optical camera, they can create a clear silhouette or radar-like image of people, large objects, or structures behind a fire. This is highly valuable for firefighter navigation.
Summary: How the System Integrates These Strategies
A practical penetration imaging system (e.g., for industrial furnace inspection or firefighting) typically uses a primary method of spectral filtering in the SWIR band, often combined with high-speed capture and advanced processing.
Process Flow:
- Spectral Selection: A SWIR/MWIR sensor with a narrow-band filter isolates a wavelength that minimizes flame emission and maximizes transmission.
- Temporal Sampling: A high-speed shutter captures brief, less-obstructed moments.
- Signal Processing: Algorithms suppress residual flicker, correct for distortion, and enhance contrast.
- Display: A relatively clear, real-time image of the object or area behind the flame is presented to the operator.
Applications:
- Industrial: Monitoring burner flames, viewing material inside kilns or furnaces.
- Firefighting: Locating victims or heat sources through flames (handheld or helmet-mounted systems).
- Aerospace/Defense: Targeting and navigation through plume interference (e.g., seeing through rocket or jet engine exhaust).
In essence, penetration imaging doesn't "see through" flame in the literal sense with normal light. Instead, it strategically looks around the flame's emission in the electromagnetic spectrum or uses wavelengths that are fundamentally unaffected by it.
